Label List

Icon:
Ribbon: Model Viewer > Labels Tab > Display Panel > Label List


Introduction


The Label List is a useful command to view and edit all user labels that have been created in Model Viewer. A user label can be added to Model Viewer by using the Add command on the Labels Tab of the ribbon.

Using the Label List dialog, users can override the prefix, suffix, style, surface (for label elevation), and leader height of a label. Users can also move the label to a new location.





Ribbon Tab and Navigation

This command forms part of the following tab:

Information on navigation in the Model Viewer 3D environment is available when reviewing the Model Viewer command help.

Details

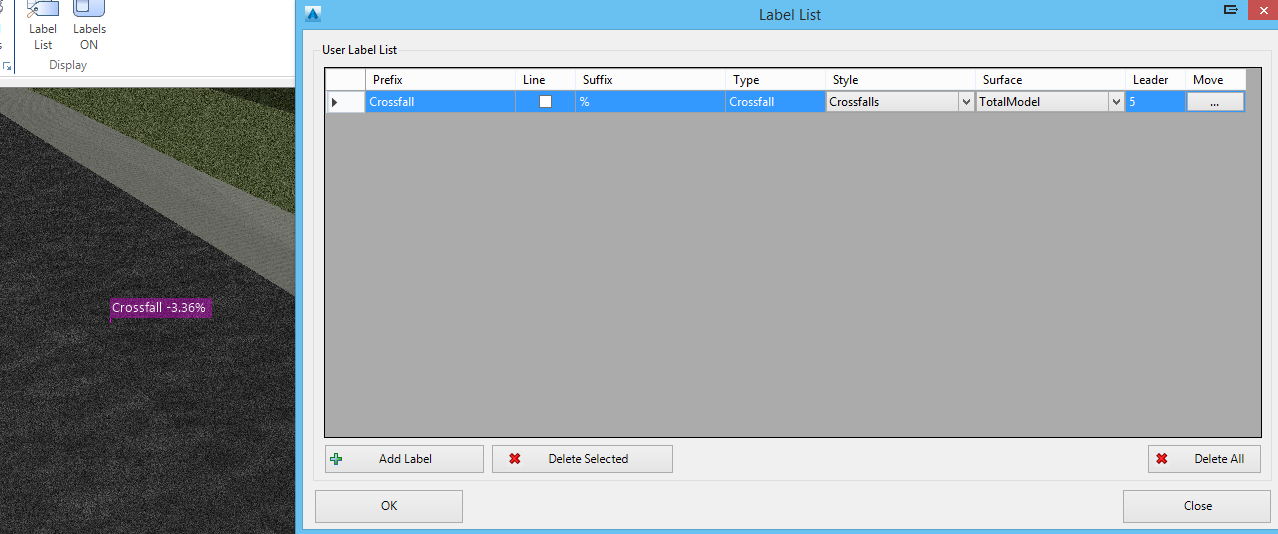

Upon selecting the command the following form is displayed:




Label List

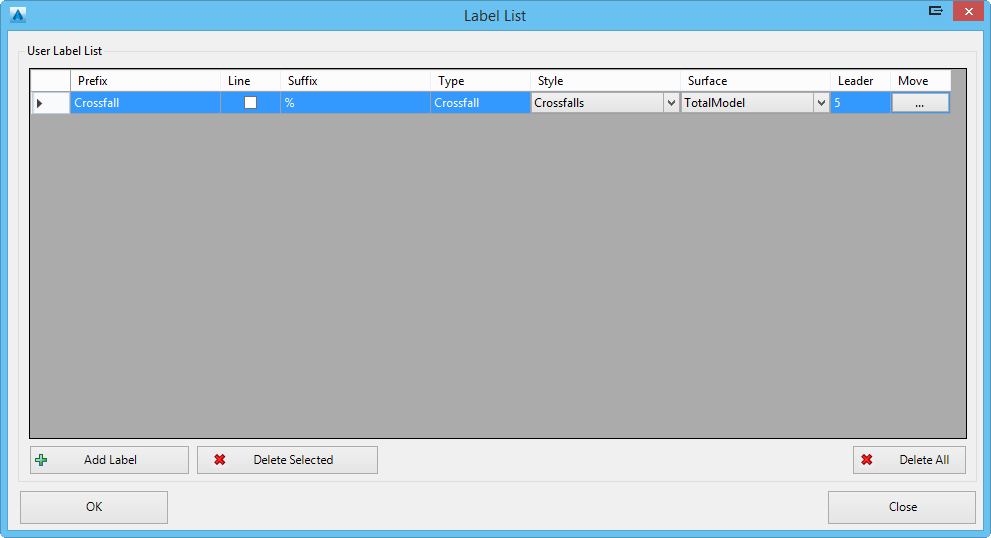

All user-labels are listed. The user can edit prefix, suffix, label style, surface (for elevation), and leader height. The user can also move the label to a new location by pressing the '...' button.

  Add Label

The user can add a new label in Model Viewer

  Delete Selected Multiple labels can be selected from the list and deleted from Model Viewer.
  Delete All All labels added by the user in Model Viewer are deleted.


OK

Apply and exit.

Cancel

Exit the form
