Design Styles

Icon:
Ribbon: Model Viewer > Home Tab > Settings Panel > Design Styles


Introduction


The Design Styles command is used to create and edit design styles, which are required for the display of design surfaces in Model Viewer. Design Styles allow the user to assign materials to code combinations that make up a design surface model. A design surface is created using either the Auto Model, Model Builder or Grading commands within Civil Site Design.

A design surface model is made up of triangles and each point on a triangle is named with a code. For example, a triangle to form part of kerb and channel may consist of the three codes INV, INV, and TK - this is known as a code combination. Using the Design Style dialog, the user can assign materials to each of the code combinations that make up a design surface model.



Ribbon Tab and Navigation

This command forms part of the following tab:

Information on navigation in the Model Viewer 3D environment is available when reviewing the Model Viewer command help.

Details

Upon selecting the command the following form is displayed:




Design Style

All available design styles are listed here and can be opened and edited by the user. Using the and buttons, the user can create new and delete design styles respectively.

Model

A list of all design surfaces/models in the project are listed here. Code combinations from the selected model can be appended to the current design style.

  Append Codes

All code combinations from the selected surface/model are appended to the code setup table.

  Clear Codes Clears all codes from the table

Code Setup

This table lists all code combinations. Materials that have been created via the Materials Group command can be assigned to a code combination.

  Override Selected The material for selected code combinations can be overriden using this option. The user simply selects multiple code combinations from the list and runs 'Override Selected' to apply the specified material group.
  Override Unassigned All entries with the 'NONE' material assigned, will be overridden with the selected Material Group

OK

Saves the current design style and closes the form

Close

Exit the form without deleting any data.





Assign Material Group to Triangle

The easiest way to assign a material to a triangle (code combination) is via the Assign Material Group to Triangle command. This command allows the user to graphically select a triangle from the model and assign a material to it.

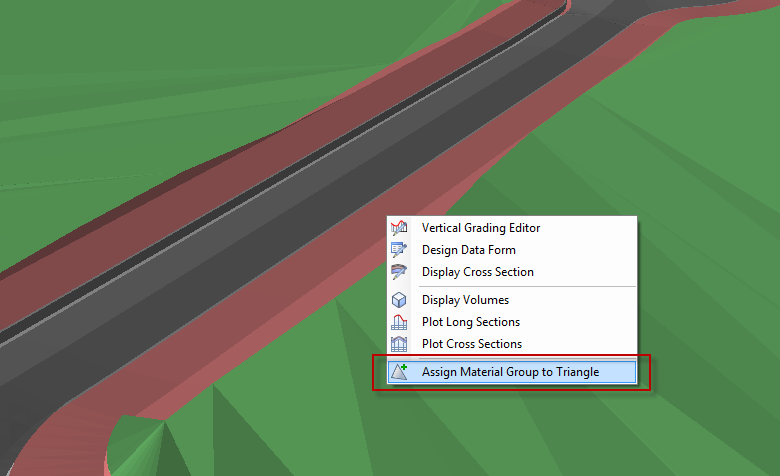

To use this method for assigning materials, it is first best to set the Model Viewer Visual Style to Shaded. Triangles that are shown in red do not have a material assigned to them. Next, the user right-clicks on the triangle they want to assign a material to and selects Assign Material Group to Triangle from the menu.

The following dialog will display:

The dialog heading will display the codes that make up the code combination for the triangle in brackets. In the screenshot above, the codes BK, RR, and RR are shown. The user than selects the material group to be assigned and the design style that it is appended to.

Note: If transparency is turned on, the software might have issues selecting the triangle. It is recommended that transparency is turned off when using the above method.
