Migrate Stringer Points


Icon:
Ribbon:   Survey Tab > Settings Panel > Migrate Stringer Points

Introduction

This command lets the user pick a legacy Stringer Topo Settings file (extension .sdb) and create the following to be used in the software:

Point Code Sets and Survey String Sets are created and saved locally for each drawing.

Note: If the migrated settings are to become the 'default' settings for future projects, then users need to open the Point Code Set and the Survey String Set forms and click the respective buttons to copy the settings into the resource settings folder so they become the defaults on new projects.

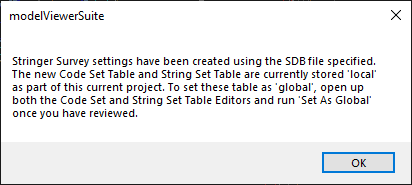

When the migration process is completed, the following message will display to remind users of the need to save the changes to the Stringer Settings Folder.

Users are encouraged to review the settings to ensure they match the requirements, especially in relation to the Survey String output (2D polyline, 3D polyline and breakline).

Details

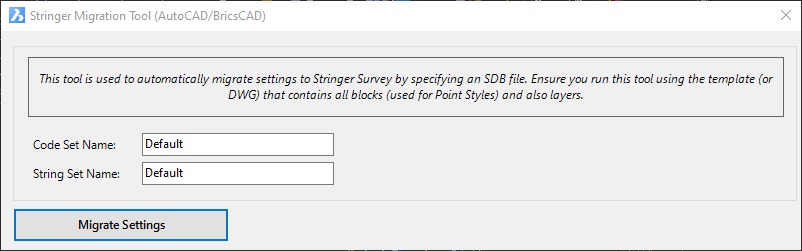

Upon selecting the command the following form is displayed:




Code Set Name

 Type in a Point Code Set name to be created from the settings file selected

String Set Name

 Type in a Survey String Set name to be created from the settings file selected

Migrate Settings

 Once clicked users will be able to navigate to and select a legacy Stringer Settings (.sdb) file to use for migration.
