Edit Network Labelling Styles

Edit Network Labelling Styles

Icon:

Menu: CSD Pipes > Settings > Edit Network Labelling Styles

Ribbon: Pipes Tab > Network Panel Slideout > Edit Network Labelling Styles

Introduction

This command is used to configure the labelling styles used to label the pits of a network. The Network Labelling Settings command uses the styles configured with this command to label a network.

Details

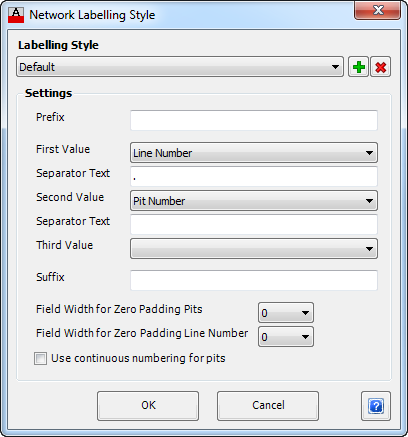

Upon selecting the command the following form is displayed:

Current Labelling Style Select the labelling style to edit.

New Labelling Style Create a new labelling style.

Delete Current Labelling Style Delete the current labelling style. The default labelling style can not be deleted.

Settings Define the settings for the current labelling style.

Prefix Enter the prefix to the first value, if required. Use an _ (underscore) as the first or last character to represent a space - when the label is created the _ (underscore) is replaced with a space.

First Value Select the first value of the style. See below for details of the available options.

Separator Text Enter the separator required between the first and second values. Any character expect a , (comma) can be used.

Second Value Select the second value of the style, or leave blank if no second value is required. See below for details of the available options.

Separator Text Enter the separator required between the second and third values. Any character expect a , (comma) can be used.

Third Value Select the third value of the style, or leave blank if no third value is required. See below for details of the available options.

Suffix Enter the suffix to the second value, if required. Use an _ (underscore) as the first or last character to represent a space - when the label is created the _ (underscore) is replaced with a space.

Field Width for Zero Padding Pits Use the pick list to set the number of leading zeros to include in the label of the pit. Up to three leading zeros can be included. (ie: when three is selected, pit 1 would be labelled 001)

Field Width for Zero Padding Line Number Use the pick list to set the number of leading zeros to include in the branch (line). Up to three leading zeros can be included. (ie: when three is selected, branch 1 would be labelled 001)

Use continuous number for pits By default, pit numbers will restart at 1 for each branch. Toggle this option to incrementally label pits with pit numbers increasing up/down each branch, in order of the branch sequencing. Pits will be uniquely numbered for the network when applied.

OK Apply and exit.

Cancel Exit the form.

Values Available

For the first and second values, the following options are available:

Line Number - Set the line (branch) ID to a number format, i.e. 1, 2, 3 etc.

Line Alpha - Set the line (branch) ID to a alpha format, i.e. A, B, C etc.

Pit Number - Set the pit ID to a number format, i.e. 1, 2, 3 etc.

Pit Alpha - Set the pit ID to a alpha format, i.e. A, B, C etc.

Pit Chainage - Set the pit ID to include the Chainage of the pit, measured from the downstream outlet.

Icon:
Menu:	CSD Pipes > Settings > Edit Network Labelling Styles
Ribbon:	Pipes Tab > Network Panel Slideout > Edit Network Labelling Styles


Current Labelling Style	Select the labelling style to edit.
New Labelling Style	Create a new labelling style.
Delete Current Labelling Style	Delete the current labelling style. The default labelling style can not be deleted.
Settings	Define the settings for the current labelling style.
Prefix	Enter the prefix to the first value, if required. Use an _ (underscore) as the first or last character to represent a space - when the label is created the _ (underscore) is replaced with a space.
First Value	Select the first value of the style. See below for details of the available options.
Separator Text	Enter the separator required between the first and second values. Any character expect a , (comma) can be used.
Second Value	Select the second value of the style, or leave blank if no second value is required. See below for details of the available options.
Separator Text	Enter the separator required between the second and third values. Any character expect a , (comma) can be used.
Third Value	Select the third value of the style, or leave blank if no third value is required. See below for details of the available options.
Suffix	Enter the suffix to the second value, if required. Use an _ (underscore) as the first or last character to represent a space - when the label is created the _ (underscore) is replaced with a space.
Field Width for Zero Padding Pits	Use the pick list to set the number of leading zeros to include in the label of the pit. Up to three leading zeros can be included. (ie: when three is selected, pit 1 would be labelled 001)
Field Width for Zero Padding Line Number	Use the pick list to set the number of leading zeros to include in the branch (line). Up to three leading zeros can be included. (ie: when three is selected, branch 1 would be labelled 001)
Use continuous number for pits	By default, pit numbers will restart at 1 for each branch. Toggle this option to incrementally label pits with pit numbers increasing up/down each branch, in order of the branch sequencing. Pits will be uniquely numbered for the network when applied.
OK	Apply and exit.
Cancel	Exit the form.
