Create/Update Network

Icon:
Menu: CSD Pipes > Create/Update Network
Ribbon: Pipes Tab > Network Panel > Create/Update

Introduction

This command creates or defines a Pipe Network from a series of connected pits and pipes.

This command will also update a defined Pipe Network, if additional pipes have been added to it or if part of a network was reconnected after being disconnected from using one of the Delete commands.

Note: House Connections or Services Network are created when their respective commands are run.

Details

Upon selecting this command, at the Command prompt the user will be asked to "Locate End Pit Required".  It is intended for the designer to select the most downstream pit representing the outflow point of the network.

If an end pit of an existing network is selected, the software will update the network to include additional items that have been attached to it and the command will exit.  For Drainage Networks users will be required to define the downstream water level, as discussed below.

If an end pit is selected and is not part of a network, the user will be prompted to create a network.  Two network types can be created, and the network options will be subject to the type of end pit detected:

Creating a Drainage Network

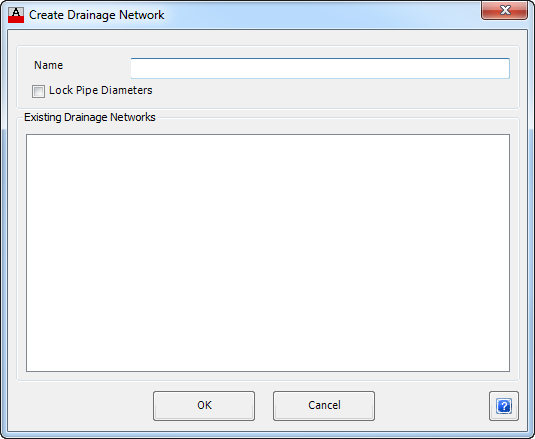

Upon selecting the a Drainage pit to represent the downstream pit of a drainage network the following form will display:




  Name Enter a unique name to describe the Pipe Network selected.  The name should consist of alpha-numeric characters only and is not case sensitive.
  Lock Pipe Diameters Check this option to lock the pipe diameters.  When the drainage network is created, all pipe diameter will be kept and the automatic pipe sizing will NOT occur and it is advised that the designer should review the hydraulic performance of the drainage network.
Existing Drainage Networks This is a list of names of defined Pipe Networks of the same type as selected.
OK Select OK to continue.
Cancel Exit the form without creating a Pipe Network.

After OK has been clicked and provided the network name entered is unique, the following form is displayed:



Downstream Water is from Provides a way to set the starting water level for the Hydraulic Grade Line Analysis.
  Top of Pipe Use the obvert of the outlet pipe as the starting water level.
  Design Surface Level Use the Design Surface Level as the starting water level.
  Specified Level Use this to define a known Starting Water Surface Level.  When selecting this option enter the level in the box shown.
Additional Cover Type in an additional cover to apply to calculate the outflow pipe elevation.  Typically applicable when Design Surface Level selected.
OK Select OK to continue and the Network is created.

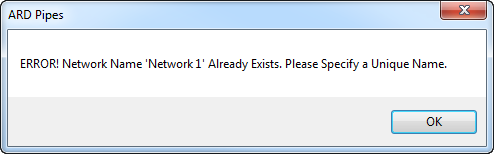

If a network name entered matches one from the list of existing networks displayed, the following warning appears and includes the duplicate network name:




OK Select OK to continue and the user is returned to Create Network form shown previously.

All of the pipes and pits that will make up the network are checked for loops and if one is found, then the network will not be created and the following warning displayed: warning appears and includes the duplicate network name:



Loop in Network Details the pit at which the loop has been detected.
  Zoom To Pit Zoom to the pit in the drawing
  Zoom/Pan Provides a way to zoom or pan around in the drawing.  Use Mouse Wheel to Zoom/Pan. Press Enter/Esc to Finish.
OK Select OK to continue and the user is returned to drawing.  No Network will be created.

The network will be created (unless a loop was found) and include direction arrows on the pipes showing the downstream direction.  Pit labels will also be updated.

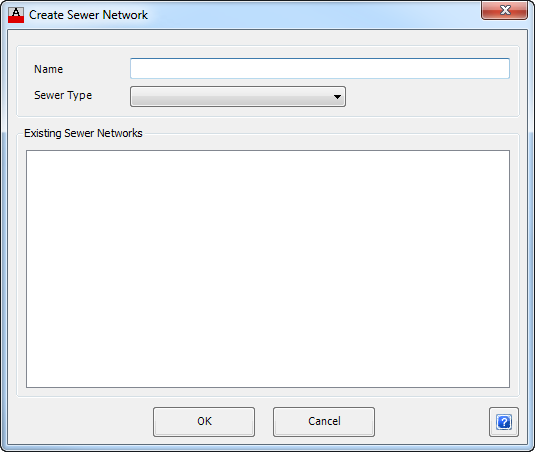

Sewer Network




  Name Enter a unique name to describe the Pipe Network selected.  The name should consist of alpha-numeric characters only and is not case sensitive.
  Sewer Type Select the appropriate type of sewer system.  The Sewer Type controls the drop conditions at pits as well as labelling controls.  These design Settings are controlled from the Active Network Settings.
  Existing Sewer Networks This box provides a list of names of defined Pipe Networks of the same type as selected.
OK Create the Sewer Network and exit.
Cancel Exit the form without creating a Pipe Network.

If the name entered matches one from the list of existing networks displayed, the following warning appears at the time of creating the network:




OK Select OK to continue and the user is returned to Create Network form shown previously.

If no Sewer Type has been selected at the time of creating the network the following warning is appears:




OK Select OK to continue and the user is returned to Create Network form shown previously.

All of the pipes and pits that will make up the network are checked for loops and if one is found, then the network will not be created and the following warning displayed: warning appears and includes the duplicate network name:



Loop in Network Details the pit at which the loop has been detected.
  Zoom To Pit Zoom to the pit in the drawing
  Zoom/Pan Provides a way to zoom or pan around in the drawing.  Use Mouse Wheel to Zoom/Pan. Press Enter/Esc to Finish.
OK Select OK to continue and the user is returned to drawing.  No Network will be created.

The network will be created (unless a loop was found) and include direction arrows on the pipes showing the downstream direction.  Pit labels will also be updated.  The end (outlet) pit of a defined Pipe Network can be identified by a different pit symbol.  The pit symbol displayed can be user defined in the Active Network Settings.
