Resample Road Cross Sections

Icon:
Menu:    Roads > Edit > Resample Road Cross Sections
Ribbon: Roads Tab > Edit Panel > Resample Cross Sections


Introduction

During the course of a design, the Designer may wish to adjust the cross section sampling for a particular Road Object.

This command enables the adjustment of the Sampling.

Details

Upon clicking the command, it requests you to select an alignment.

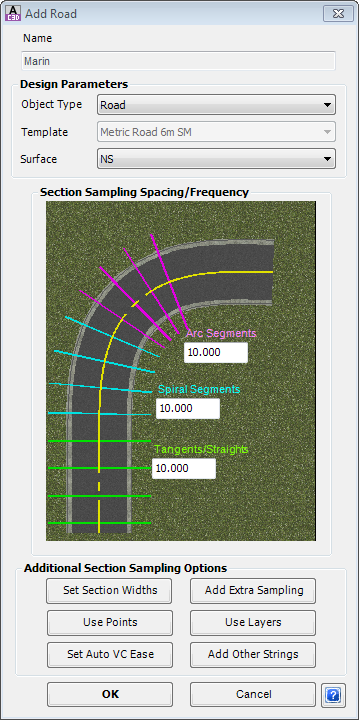

After selecting an alignment the Add Road form is displayed for editing as shown below:

For more information on the inputs and controls available review the Create/Edit Road command.
