Surfaces

Surfaces

Details

Users are able to select to display up to four surfaces on the long section.

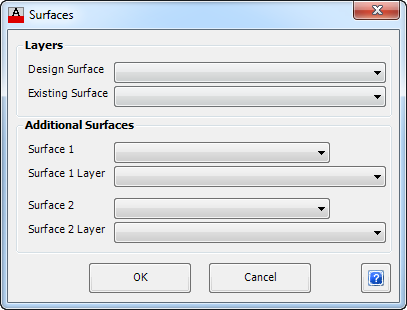

Upon selecting the command he following form is displayed:

Layers Provides controls over the two main surfaces to be plotted. These surface are nominated in the Active Drawing Settings.

Design Surface From the drop down list select the required layer to display the Design Surface. Use the Layer Settings command to edit the layers available.

Existing Surface From the drop down list select the layer to display the Existing Surface. Use the Layer Settings command to edit the layers available.

Additional Surfaces Provides controls to plot two additional surfaces on a long section.

Surface 1 From the drop down list select the first additional surface to be plotted.

Surface 1 Layer From the drop down list select the layer to display the extra surface. Use the Layer Settings command to edit the layers available.

Surface 2 From the drop down list select the second additional surface to be plotted.

Surface 2 Layer From the drop down list select the layer to display the extra surface. Use the Layer Settings command to edit the layers available.

OK Apply, exit the form and add controls to Table.

Cancel Exit the form without adding control to Table.

Return to Plot Long Section > Edit Data Bands/Controls
