Network Labels

Menu:   Via Label Plan
Ribbon:   Via Label Plan

Introduction

Network Labels enable the user to label a pipe network on plan, with the option to customise each label style. The user can customise the labels of the individual pipes and structures, depending on requirements.

Both structures and pipes can be labelled at the same time using this command.  There are enhancements to the label control (text offset, rotation, inclusion of leaders, borders, etc) with the label presentation being driven by Label Styles.

If any pipe network is updated, the Synchronise command should be run to update all labels.

Users can have two Structure Label Styles (applying to the end structure and then all other structures), or they can tick on the option 'Show structure styles for pipe in/out' to enable different structure label styles to be applied to each pipe in/out configuration.

Note: When a pipe network is created, each structure will automatically calculate the offset to the nearest Road String - this can be labelled by applying Text Items for 'Road 2' in the list of items in the Label Style.  If a structure is set to a Road in the Edit Structure Properties form, then the Text Items of 'Road Adjacent' will display information about this road (such as chainage, offset).

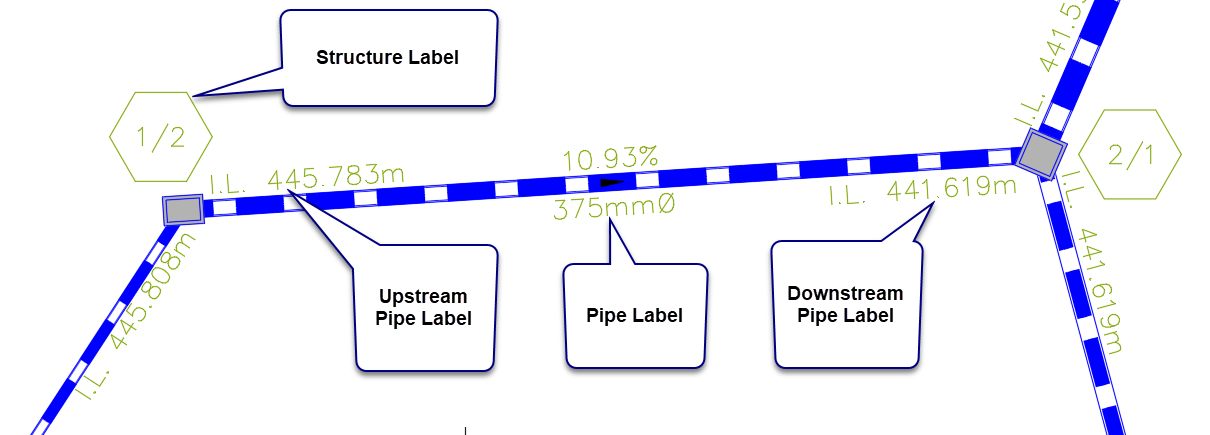

Example Output - Single Label for all Structures

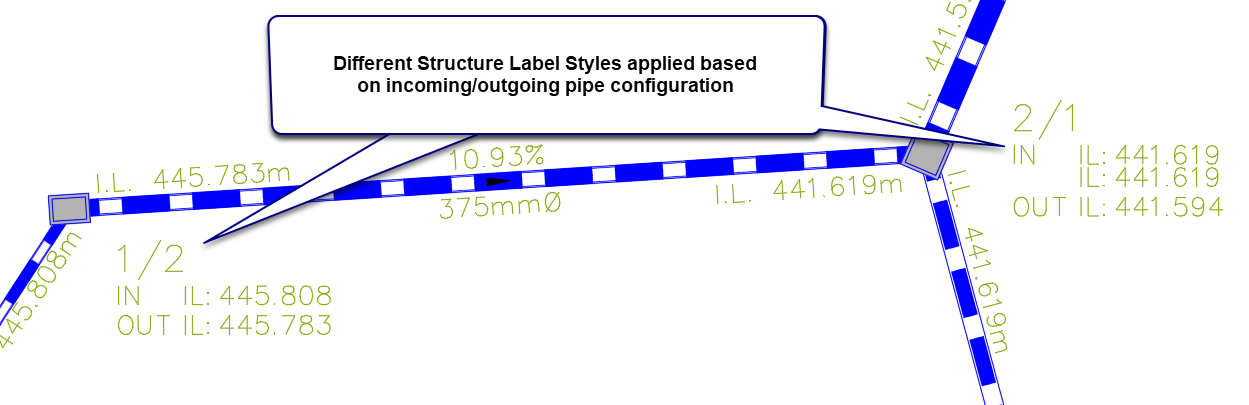

Example - Configured Structure Label Styles based on pipe in/out configurations

Details

These are created via the Label Plan command.  If new, users will need to firstly name the group.  The followng form displays:

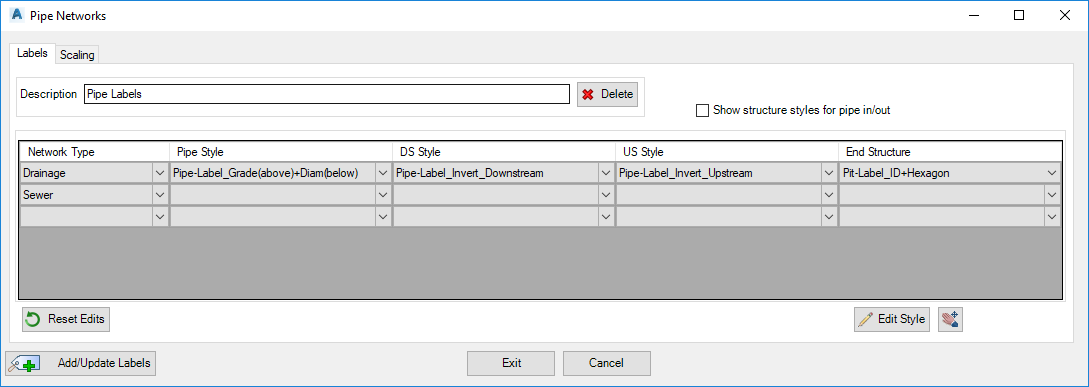

Structure Label Styles per pipe in/out configuration not enabled:

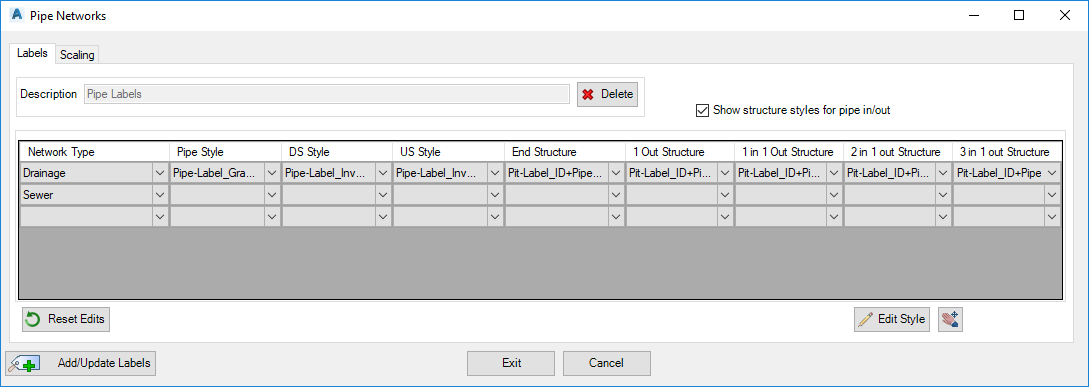

Structure Label Styles per pipe in/out configuration enabled:

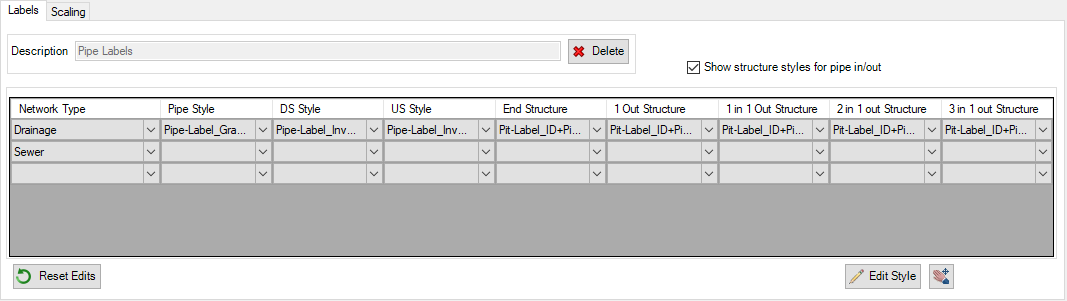

Labels Tab

This tab manages the parameters for the labels






Description

Group name of the Network Labels to be applied to the drawing

Show structure styles for pipe in/out

 Default toggle is off.  When off (unticked), one column is provided to assign a Structure Label Style to apply to all Structures
When ticked (on), 5 columns are displayed for the user to assign Structure Label Styles for each of the 5 pipe inlet/outlet configurations.
Network & Style Selection

  Network Type

 Select from Drainage or Sewer

  Pipe Style

 Select a predefined Pipe Label Style  The style will be initially inserted centrally for each pipe

  DS Style

 Select a predefined Pipe Label Style to apply at the downstream end of the pipe

  US Style

 Select a predefined Pipe Label Style to apply at the upstream end of the pipe

  End Structure

 Select a predefined Structure Style to apply to structures in the drawing.
Note: if 'Show structure style for pipe in/out' is unticked, the Label Style set in the End Structure column is applied to all structures in the drawing.  If ticked, the selected Label Style here will apply only to the most downstream structure of each network.

  1 Out Structure

 Select a predefined Structure Style to apply to the most upstream structures in the network

  1 in 1 Out Structure

 Select a predefined Structure Style to apply to structures with one incoming and one outgoing pipe to the structure

  2 in 1 Out Structure

 Select a predefined Structure Style to apply to structures with two incoming and one outgoing pipe to the structure

  3 in 1 Out Structure

 Select a predefined Structure Style to apply to structures with three incoming and one outgoing pipe to the structure
Reset Edits Select to reset grip editted labels to default positions

Edit Style

 This opens the Label Styles command for Surface Labels
Pan Click to temporarly enable user panning in the drawing.

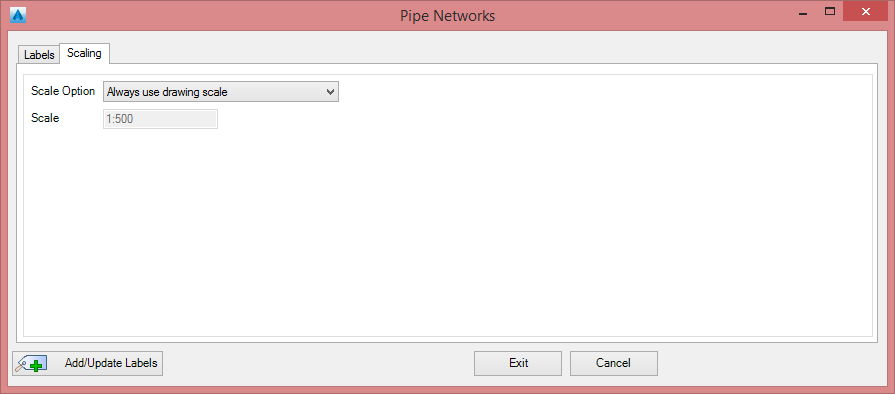

Scaling Tab

This tab manages the scaling of the labels within the drawing






Scale Option

 Pick the following options
  Always use drawing scale The label sizes are defined by the user annotation scale set in the drawing (CANNOSCALE)
  Keep first drawing scale The drawing scale at the time of the Labels creation will be permanently stored & used regardless of future drawing scale changes.
  User scale User can define the drawing scale of the labels using the box below

Scale (1:x)

 Select a list scale from the list or type a custom scale
Output
Add labels / update all labels within the current Description set in the drawing
Exit the Networks Labels command
