Section Manager

Icon:
Menu:	Roads > Labels > Section Manager General > Labels > Section Manager
Ribbon:	Roads Tab > Plan Production Panel > Cross Sections Dropdown > Section Manager Roads Tab > Plan Production Panel > Section Views Dropdown > Section Manager General Tab > Labels Panel > Settings Dropdown > Section Manager

---

Introduction

The Section Manager provides tools to establish a named list of sections (chainages/stations) to include in outputs.  The 'named' section list can be referred to by the designer at the time of generating outputs, such as for the Alignment Labels, Cross Section Plots, Points by Reference, Multi String, Profile Views and Section Views commands.

Each 'named' list is defined by the user - it can be set up with general default controls over horizontal and vertical geometry, or it can be specifically related to sections sampled for a particular string.

The Section Manager provides additional functionality over the Selected Sections command because the user can establish any number of 'user defined' lists of sections to ouptut - the user can then refer to one of the named user lists to manage the chainages/stations to be used for plotting.

Note: Lists are copied to each string - when a List is edited, it is edited specifically for that String.  Named lists are uniquely assigned to a String.  Changing the inputs to a Named list for one road/string will NOT be transferred to another road/string.  New lists created are applied to the selected string ONLY.

Use the Global Section Manager command to create section lists that will be available on new projects, or use the Copy options on this form to copy local lists to the CSD Settings (to make it available for new projects).

Details

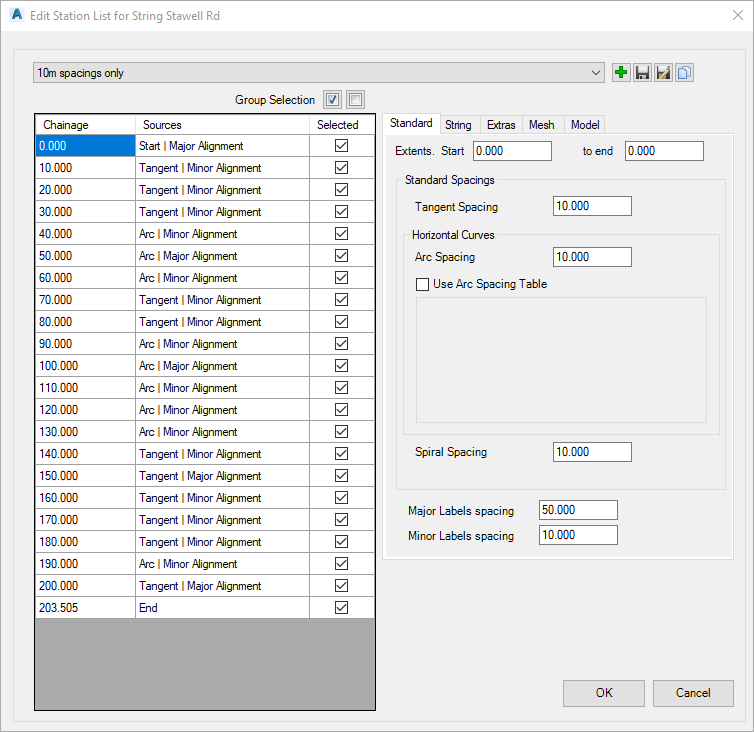

Upon selecting the command the user is required to pick an alignment. Once selected, the following form is displayed.  Edits to named section lists are applied to that string only:

Manage Lists	Use this section to create and select lists for editing
Pick List	Select a created named list from the dropdown.  This can then be applied to the selected string.
	Select to add a new Section List. On selection, a form is displayed to name the list.  Type in a name, then OK to create or Cancel to exit.
	Saves any changes applied to the list.  OK also saves upon exit
	Save a copy of the list with a different name.  After typing in a name and clicking OK users will be offered the option to save the name in the Global list - clicking Yes will add the named Section List to the CSD Settings (Global Section Lists) for automatic inclusion on any new Strings created

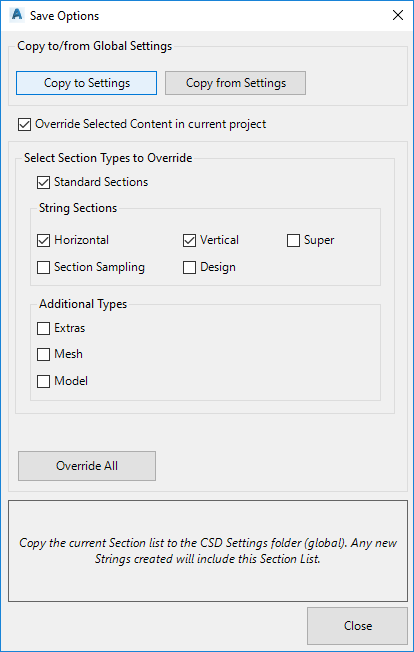

	Copy the list across to the CSD Settings (for inclusion in any new Strings in the future) or selectively override content in section lists for other strings in the current project Copy to/from Global Settings Copy the named section list to the CSD (Global) Settings folder for inclusion in any new strings created.     Copy to Settings Copies the currently selected Section List to the CSD Settings folder. If the same named list exists in the CSD Settings folder, users will be prompted whether to overwrite.    Copy from Settings Copy all Named Section Lists in the CSD Settings to the current String.  This is a neat way to transfer quality lists between strings Override Selected Content in Current project An edit made to a Section List may need to be transferred to other Strings already created in the current drawing.   If ticked on, users can select which Section Types (eg: Standard spacings, Horizontal Geometry) to override on other String section lists Select Types to Override If Override Selected ticked on, users can select the section information to override.    Standard Sections If ticked on, the Standard Sections inputs will replace the Standard Section contents on other strings and alignments     String Sections Override select types that apply to the String        Horizontal If ticked on, the String>Horizontal section inputs will replace the String>Horizontal section contents on other strings and alignments.        Vertical If ticked on, the String>Vertical section inputs will replace the String>Vertical section contents on other strings.        Super If ticked on, the String>Super section inputs will replace the String>Super Section contents on other strings.        Section Sampling If ticked on, the String>Section Sampling inputs will replace the String>Section Sampling contents on other strings.        Design If ticked on, the String>Design section inputs will replace the String>Design section contents on other strings.     Additional Types Override other types        Extras If ticked on, the Extras section inputs will replace the Extra section contents on other strings and alignments        Mesh If ticked on, the Mesh section inputs will replace the Mesh section contents on other strings and alignments        Model If ticked on, the Model section inputs will replace the Model section contents on other strings and alignments    Override All  Override the selection Section Types on all created strings in the project (this is applied to the same named Section Manager list)
Update List	This button will display whenever input sources are changed via the tabbed list on the right.  This updates the list of output sections, left using the on/off switches of Source data.
Group Selection	All highlighted chainages in the list view are turned on/off using these tick boxes.
List of Sections	This lists all the Chainage/Sections applied to the String, the source of the section, and a tick box to include or exclude the section.
Chainage (Station)	List of chainages/stations that have been sampled.
Sources	Lists the data source for the section.  Multiple sources are shown with a space between sources.  Typical sources include: - start: start of the string - Tangent: standard tangent spacing - Arc: standard arc spacing - Spiral: standard spiral spacing - Tangent-Curve, Tangent-Spiral, Spiral-Curve, Curve-Spiral, Spiral-Tangent, Horizontal IP, Compound Curve, Secant: Horizontal Geometry points.   - Start VC: Begin vertical curve - End VC - end vertical curve - Vertical IP - point of vertical intersection - Minor Alignment - standard spacing for alignment labelling - Major Alignment - standard spacing for alignment labelling There are others - as geometry and data features are turns on and update, users can read the names of the sources added
Selected	Any section can be ticked on/off for inclusion in the list.  This acts as a user controllable filter of the sections to be used in outputs.
Section Control Tabs	Tabbed selection list to manage the sections being applied.

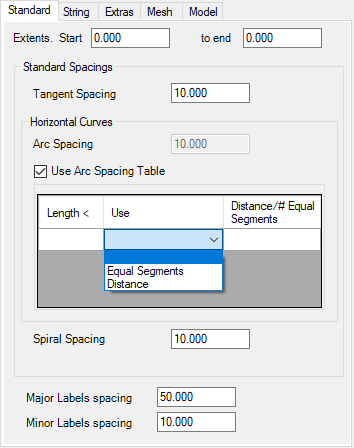

Standard	Set the range to include and standard spacings for horizontal tangents, arcs and spirals.   Also control the extents of sections to include for ANY source. Start Start chainage (station) to include for section list.  To end End chainage (station) to include for section list.  Type zero to adopt the full extents of the string. Standard Spacings Sets up the standard spacings to apply    Tangent Spacing Regular interval spacing to apply along horizontal tangents.    Horizontal Curves Sets up the standard spacings to apply through horizontal curves      Arc Spacing Type in a value for regualr interval spacings through horizontal curves      Use Arc Spacing Table Option to use a table to control the arc spacings.  If ticked on, Arc Spacing field is disabled.    Arc Spacing Table Multiple control options for spacings through arcs      Length < Set a length of curve for the particular spacing to apply       Use Pick list: Equal Segments - type in a number of equal length segments to split the curve and create sections.   Distance - type a distance between sections through arcs.  These are applied at regular intervals, measured from zero.       Distance/# Equal Segments Type in a value    Spiral Spacing Value through spirals Major Labels Spacing Type in a value for labelling of the Major Chainage on alignments. Minor Labels Spacing Type in a value for labelling of the Minor Chainage on alignments.

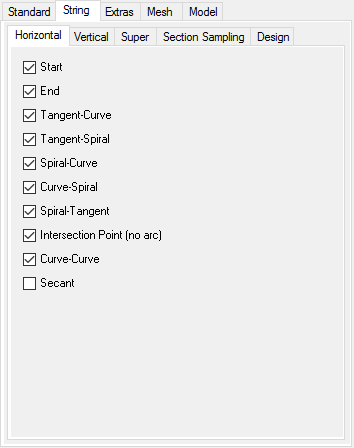

String       Horizontal	Tick on to include the required geometry points   Start Start of alignment   End end of alignment   Tangent-Curve Intersect of arcs and tangents   Tangent-Spiral Tangent to spiral   Spiral-Curve  Spiral to curve   Curve-Spiral Curve to spiral   Spiral-Tangent Spiral to tangent   Intersection Point (no arc) Horizontal intersection point, where no curve is included   Curve-curve Compound curve   Secant Secant

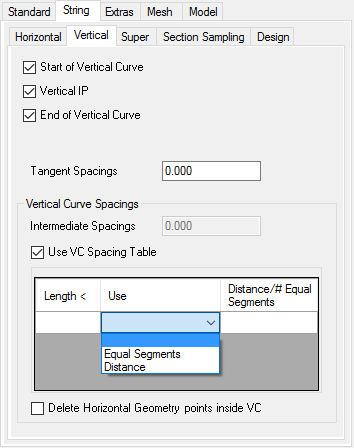

String       Vertical	Start of Vertical Curve Start of vertical curve Vertical IP Point of vertical intersection End of Vertical Curve End of vertical curve  Tangent Spacings Regular interval spacings to apply along the vertical tangents.  The value set will be applied in the increment specified, starting from zero.   Type zero to omit. Vertical Curve Spacings Control spacings through vertical curves. Intermediate Spacings Regular interval spacings to apply along the vertical curves.  The value set will be applied in the increment specified, starting from zero. Type zero to omit. Use VC Spacing Table Tick on to use a table to manage spacings through vertical curves.  If ticked on, the Intermediate Spacing field is ignored.   Vertical Curve Table Control spacings through vertical curves.   Length < Set a length of vertical curve for the particular spacing to apply    Use Pick list: Equal Segments - type in a number of equal length segments to split the curve and create sections.  This will take the total length of curve, divide it into segments and then set the matching chainage (station) values. Distance - type a distance between sections through vertical curves.  These will be applied in the increment specified, starting from zero.    Distance/# Equal Segments Type in a value Delete Horizontal Geometry points inside VC If horizontal geometry points are inside a vertical curve, omit them.

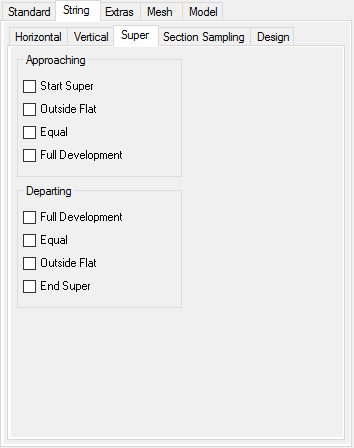

String        Super	Add superelevation points:   Forwards Approaching the curve - measured in the direction of the alignment     Start Super Superelevation about to start      Outside Flat One side has zero crossfall      Equal Both sides are at the same crossfall       Full development Superelevation fully developed.   Reverse Departing the curve - measured in the direction of the alignment     Full Development Superelevation fully developed.     Equal Both sides are at the same crossfall     Outside Flat One side has zero crossfall       End super Superelevation finish

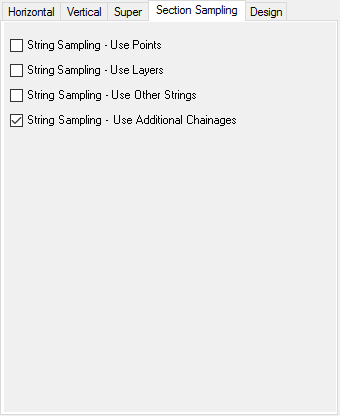

String        Section Sampling	When a String is created or sections resampled (these command options open the Create/Edit Road (String) form) the user can select to add sampling based on cogo points, lines and arcs on a layer in the drawing, by referencing another string, and by user input of additional sections.  Here users can opt to include this sampling into the section list. This is a view of the typical inputs in the Create/Edit Road form that are able to be included: Form appears as follows   String Sampling - Use Points Adds sections to the list that were created via the Use Points form   String Sampling - Use Layers Adds sections to the list that were created from the Use Layers form   String Sampling - Use Other Strings Adds sections to the list that were created from the Use Other Strings form   String Sampling - Use Additional Chainages Adds sections to the list that were created from the Add Extra Sampling button

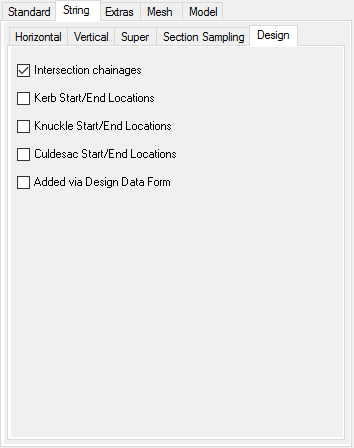

String        Design	As part of the modelling process, the software adds sampling to Road Strings for Kerb, Culdesac and Knuckle strings start/end, and where another Road string crosses. As well, users can add extra sampling to any String when adding entries in the Design Data form. These can be included for outputs.   Intersection Chainages Includes intersection of Road strings with Road Strings   Kerb Sart/End Locations Includes locations where kerb strings start/end along the Road   Knuckle Start/End Locations Includes locaitons where knuckle strings start/end along the Road   Culdesac start/end locations Includes locations where culdesac strings start/end along the Road   Added via Design Data form Includes sampling added via the Design Data form.

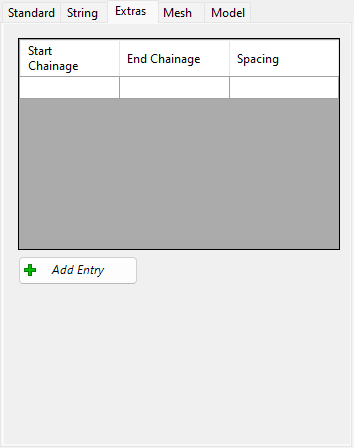

Extras	This enables user addition of labels at any input chainage/s (station/s)   Start Chainage/Station type in a start chainage   End Chainage/Station Type in an end chainage, for sampling over a range   Spacing Type in a spacing to apply between the start and end.  Add Entry Click to add entries via selection in the drawing.  Follow the command prompts and left click to add an extra section

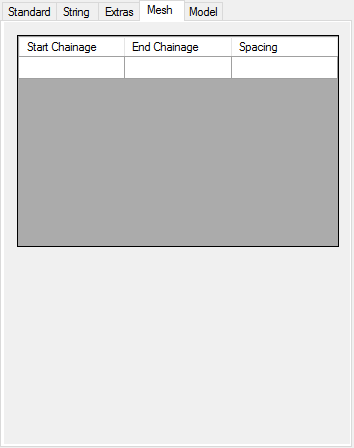

Mesh	User input of exact chaianges/stations to add.  Same input method as for Extras, but with a different Source name.   Start Chainage/Station type in a start chainage (station)   End Chainage/Station Type in an end chainage, for sampling over a range   Spacing Type in a spacing to apply between the start and end.

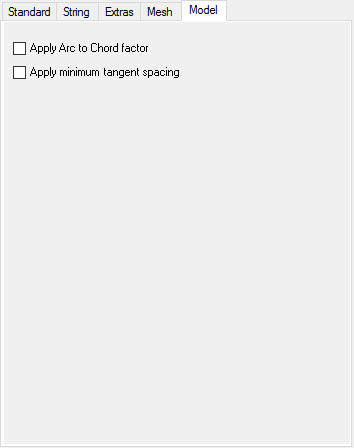

Model	These controls are set in the Active Drawing Settings command > Miscellaneous tab.  They relate to the automatic inclusion of sampling through horizontal curves.    Apply arc to chord factor Increase sampling through horizontal curves.  Value extracted from the Active Drawing Settings     Apply minimum tangent spacing Increase sampling along tangents.  Value extracted from the Active Drawing Settings
Update List	This button will display whenever input sources are changed via the tabbed list on the right.  This updates the list of output sections, left using the on/off switches of Source data.
OK	Save and exit
Cancel	Exit without saving.
