Multi Section Viewer

Icon:



---

Introduction

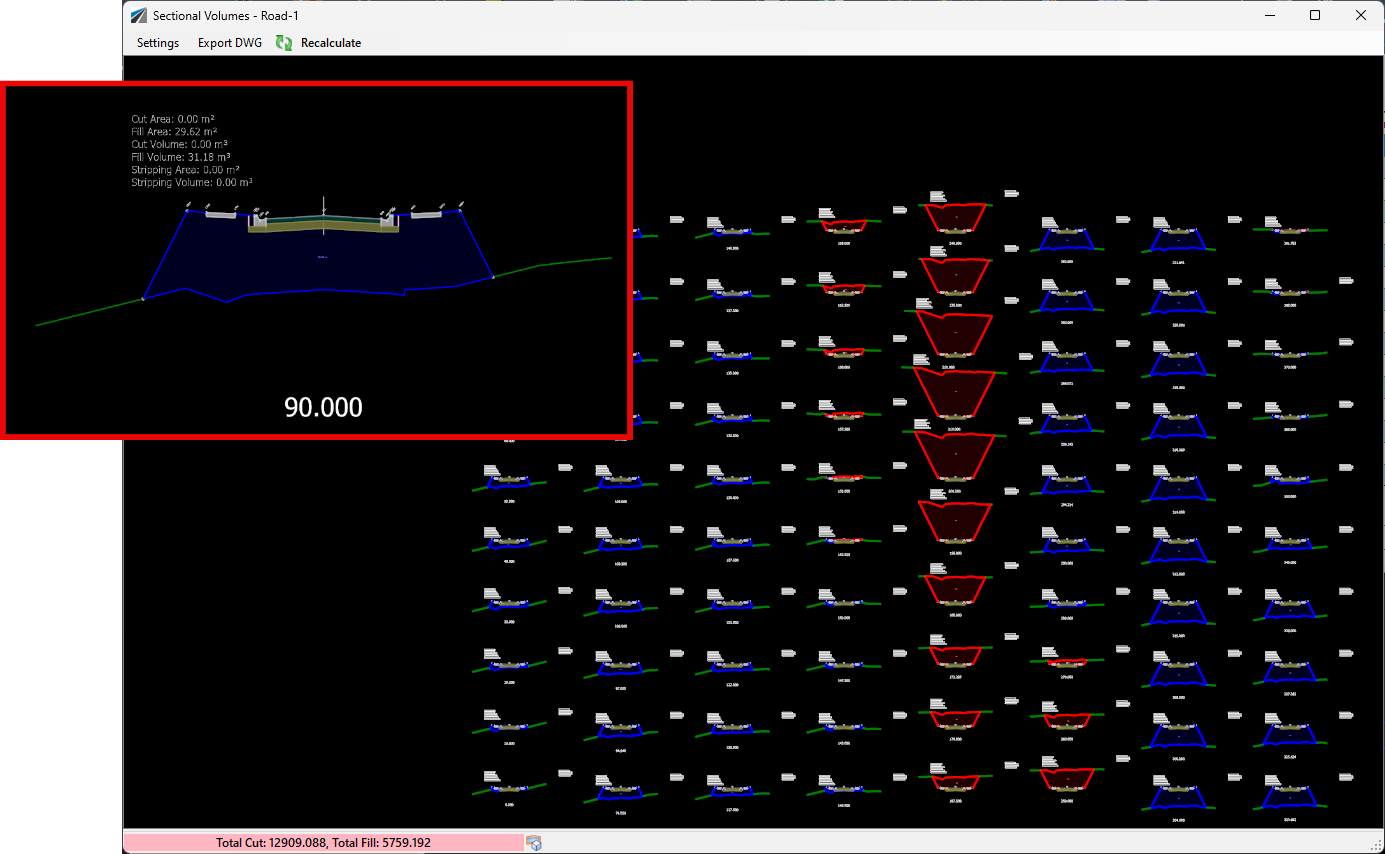

The Multi Section Viewer displays calculated cut and fill areas per cross section, as well as area and volume table information.

The determination of what is displayed for each cross section, and the section spacings, comes from the Section Volumes form.

All sections are displayed for a selected String.

Navigation is via the mouse.  Roll the middle mouse to zoom and hold down the middle mouse button to pan.

This command may be available from the Toolspace and is accessible from the Section Volumes form

Details

Form controls:

Menu dropdown

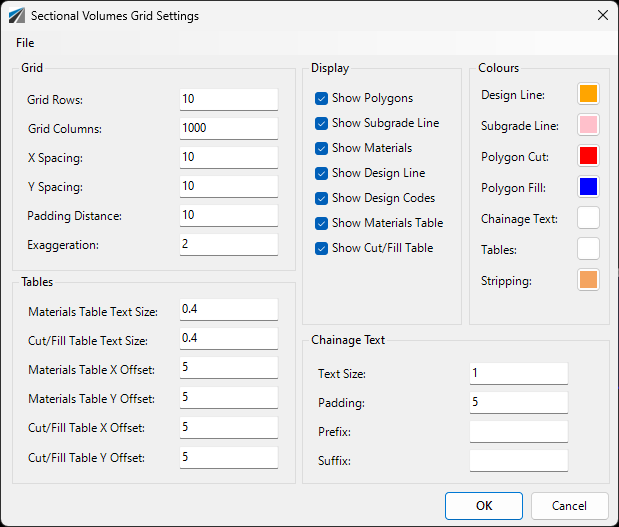

Settings	File > Import Styles Import saved presentation/output styles File > Export Styles Create a save file with the current display settings Grid     Grid Rows  Set the number of rows before starting a new column    Grid Columns Set the maximum number of columns to display sections     X Spacing Horizontal distance between sections in a row     Y Spacing Veritcal distance between sections in a column     Padding distance Padding value between sections     Exaggeration Vertical exaggeration to apply Display       Show Polygons  Draw the cut/fill areas and shade     Show subgrade line Draw the calculated subgrade line     Show Materials Display the design section materials/layers     Show Design Line Draw the calculated design line     Show Design Codes Draw the code text     Show Materials Totals Display the materials totals table     Show Cut/Fill Table Display the cut/fill table Colours Set the colours used for display    Design Line Click the colour swatch to change this display    Subgrade Line Click the colour swatch to change this display    Polygon Cut Click the colour swatch to change this display    Polygon Fill Click the colour swatch to change this display    Chainage Text Click the colour swatch to change this display    Tables Click the colour swatch to change this display    Stripping Click the colour swatch to change this display Tables Set up the table display     Materials Table Text Size Set the size of the materials table text     Cut/Fill Table Text Size Set the size of the cut/fill table text     Materials Table X Offset Type a distance to offset the table (measured from the LEFT SIDE extents of the section). Note: table insertion is top left     Materials Table Y Offset Type a distance to offset the table (measured from the highest elevation of the drawn section). Note: table insertion is bottom left     Cut/Fill Table X Offset Type a distance to offset the table (measured from the RIGHT SIDE extents of the section). Note: table insertion is top left     Cut/Fill Table Y Offset Type a distance to offset the table (measured from the highest elevation of the drawn section). Note: table insertion is bottom left Chainage Text Manage the chainage text display     Text Size Set the size of the chainage text     Padding Add a padding distance from the bottom midpoint of the section     Prefix Optional prefix text     Suffix Optional suffix text
Export DWG	Create a drawing file (.dwg) from the displayed data.
Refresh	Refresh the display.  Useful if the design has changed while the form was open.
Total Volume display	Total volume (reported at Total Cut XXX, Total Fill YYY will display
Open Section Volumes form	Opens the Section Section Volumes form.
