Convert Code Settings

Convert Code Settings

Icon:

Ribbon: Surfaces Tab > Points Panel > Convert Code Settings
Site Tab > Points Panel > Convert Code Settings

Introduction

The Point Group commands include a Convert Codes command, to swap multiple codes from one to another. Most commonly, this would be used to swap a numeric Code pickup to alpha Codes.

This command underpin the Convert Codes command found in Point Groups, allowing users to create mapping files to swap point Codes.

Details

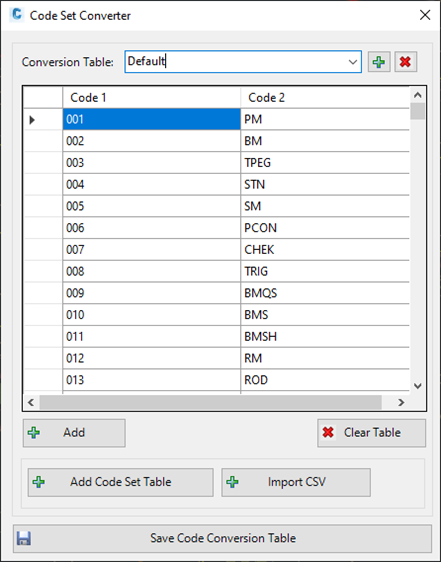

Upon selecting the command the following form is displayed:

Conversion Table
Picklist of Conversion Tables for editing

Add
Create a new Conversion Table

Delete
Delete the currently selected Conversion Table

Conversion Table
Displays the options for swapping one Code for another.

Code 1
First Code

Code 2
Second Code

Add Add a new Code pair to enable swapping.

Clear Table Delete all items in the table

Add Code Set Table Import Codes from a Point Code Set.

Import CSV Import a comma separated text file of codes. Format of the file is as follows:
Code1,Code2
Each line describes a Code pair to swap.

Save Code Conversion Table
Saves the Code Conversion Table edits
