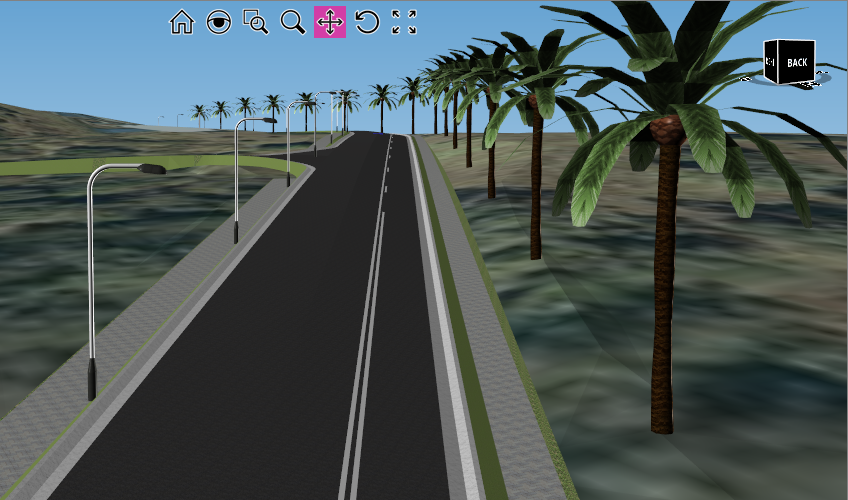

Object Groups allows designers to establish objects
repeatedly over a range, with dynamic positioning (and rotation)
relative to a design string, code or surface. This is very useful for
placing signs along the design (curve signs, warning, regulatory) and for
repeated items such as bollards, trees and street lighting (with street
lighting oriented perpendicular to the sring).
The Object Groups interface makes it easy to add items at
any position along an alignment, to remove items from the group and to add
items. The Object Group list itemises each object added - users can
change the chainage, the object type (.obj) and the object scale.
Objects can be deleted using the Object Edit tools in Model
Viewer, however are preferably managed using the Object Groups form.
|
|
|

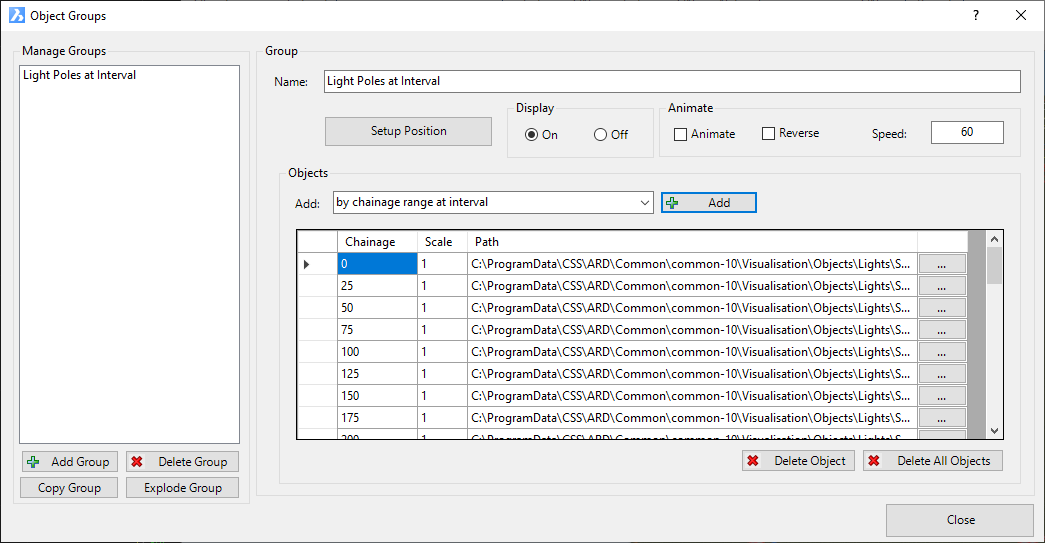

Object Groups |
This is where object groups are listed for editing, and
includes options to create and delete extrusions |
|
[List of Extrusion
Groups] |
Click on a named Extrusion Group to edit on the right |
|
Add Group |
Create a new Extrusion Group. Edit using the Details
on the right |
|
Delete Group |
Delete a selected Extrusion Group. |
|
Group |
The setup and definition of the object group. |
|
Name |
Name the Object Group |
|
Setup
Position |
This opens the
Positioning
Form, which is used extensively in Model Viewer to
establish object positions.
Details on
the inputs are as noted in the
Positioning
Form help link. |
|
Objects |
This establishes the group of objects to add |
|
Add |
Use the picklist for a method of adding objects, then click
on the
Add button. Add options include: |
|

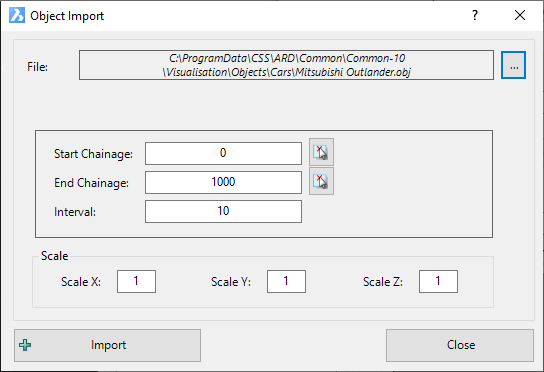

By
chainage range at interval |
|
User specified distance between
objects along the alignment/string.
 |
|
File Selection (...) |
Click to select the object to import. The following
form will display:
|
 |
|
Directory (...) |
Click here to select the directory to open containing
objects |
|
Files |
Select an object from the current folder |
|
Preview |
Displays a 3D view of the selected object |
|
Scale |
|
|
Scale X |
Set the X scale of the object |
|
Scale Y |
Set the Y scale of the object |
|
Scale Z |
Set the Z scale of the object |
|
Open |
Select the object for import |
|
Cancel |
Return to the previous form |
|
|
Start Chainage |
Type in the chainage for the start of the object creation.
Use the pick button to select from the drawing |
|
End Chainage |
Type in the chainage for the end of the object creation.
Use the pick button to select from the drawing |
|
Interval |
Type in the distance between objects |
|
Scale |
|
|
Scale X |
Set the X scale of the object |
|
Scale Y |
Set the Y scale of the object |
|
Scale Z |
Set the Z scale of the object |
|
|
|
|
Image Preview |
A .obj file is usually accompanied by a folder with the same
name as the .obj. This file will contain images used by the
.obj. This preview window will display these images
for a quick identification (thumbnail) of the object. |
|
  |
Click on the arrows to cycle
through images, where more than one is available |
|
|
|
|
Import |
The objects are added to the
Object Group list, listed by chainage along the alignment. |
|
|

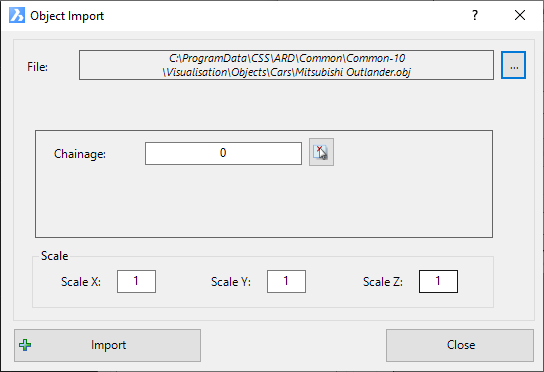

Single Chainage |
|
Single object insertion along
the alignment/string.
 |
|
File Selection (...) |
Click to select the object to import. The following
form will display:
|
|
|
Directory (...) |
Click here to select the directory to open containing
objects |
|
Files |
Select an object from the current folder |
|
Preview |
Displays a 3D view of the selected object |
|
Scale |
|
|
Scale X |
Set the X scale of the object |
|
Scale Y |
Set the Y scale of the object |
|
Scale Z |
Set the Z scale of the object |
|
Open |
Select the object for import |
|
Cancel |
Return to the previous form |
|
|
Chainage |
Type in the chainage for the object insertion. Use the
pick button to select from the drawing |
|
End Chainage |
Type in the chainage for the end of the object creation.
Use the pick button to select from the drawing |
|
Interval |
Type in the distance between objects |
|
Scale |
|
|
Scale X |
Set the X scale of the object |
|
Scale Y |
Set the Y scale of the object |
|
Scale Z |
Set the Z scale of the object |
|
|
|
|
Image Preview |
A .obj file is usually accompanied by a folder with the same
name as the .obj. This file will contain images used by the
.obj. This preview window will display these images
for a quick identification (thumbnail) of the object. |
|
|
Click on the arrows to cycle
through images, where more than one is available |
|
|
|
|
Import |
The objects are added to the
Object Group list, listed by chainage along the alignment. |
|
|
Sections |
|
This uses all the sampling from
the selected string.
|
|
File Selection (...) |
Click to select the object to import. The following
form will display:
|
|
|
Directory (...) |
Click here to select the directory to open containing
objects |
|
Files |
Select an object from the current folder |
|
Preview |
Displays a 3D view of the selected object |
|
Scale |
|
|
Scale X |
Set the X scale of the object |
|
Scale Y |
Set the Y scale of the object |
|
Scale Z |
Set the Z scale of the object |
|
Open |
Select the object for import |
|
Cancel |
Return to the previous form |
|
|
Chainage |
Type in the chainage for the object insertion. Use the
pick button to select from the drawing |
|
End Chainage |
Type in the chainage for the end of the object creation.
Use the pick button to select from the drawing |
|
Interval |
This field is not used. The sampling
along the string will be used for object locations. |
|
Scale |
|
|
Scale X |
Set the X scale of the object |
|
Scale Y |
Set the Y scale of the object |
|
Scale Z |
Set the Z scale of the object |
|
|
|
|
Image Preview |
A .obj file is usually accompanied by a folder with the same
name as the .obj. This file will contain images used by the
.obj. This preview window will display these images
for a quick identification (thumbnail) of the object. |
|
|
Click on the arrows to cycle
through images, where more than one is available |
|
|
|
|
Import |
The objects are added to the
Object Group list, listed by chainage along the alignment. |
|
|
[List of
added Objects] |
This lists each object added to the group. The objects
are defined with the following controls:
|
Chainage |
This is measured along the alignment/sring defined in the
Set Position form. |
|
Scale |
Type in a scaling for each object (default is 1) |
|
Path |
The path to the object. Use the ... button to change
the .obj applied for any item in the list |
|
|
Explode
Group |
Converts the object group into individual objects, which are
then managed via the
Import Objects
and object Edits commands.
Note: There is no undo for this action |
|
Delete
Object |
Deletes a selected object from the group.
Note: Select the object by clicking on the
cell in the first column. This highlights the whole
object entry, selecting it for deletion. Otherwise the
item will not be deleted |
|
Delete
All Objects |
Click to remove all objects from the list. |
|
Close |
Exit the form without deleting any data. |
