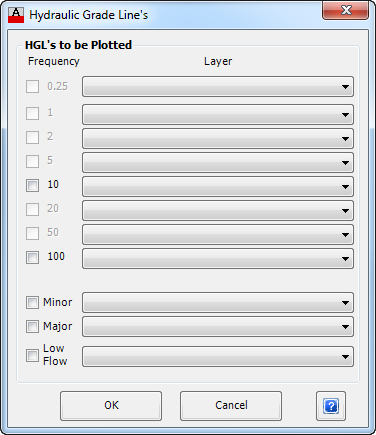

This provides control on which HGL's (Hydraulic Grade Line) are to be plotted in the view frame. Linework will be added describing the selected HGL level/s.

Frequency Tick the box next to the desired Frequency that is to be plotted on the Long Section. Note: Only analysed storm frequencies will be selectable for inclusion on the long section.

Layer From the drop down list select the required layer for the display of the HGL's. Use the Edit Layer Settings command to edit the layers available.

OK Apply and add Data Band Control to list and exit.

Cancel Exit the form without adding any data.


Frequency	Tick the box next to the desired Frequency that is to be plotted on the Long Section. Note: Only analysed storm frequencies will be selectable for inclusion on the long section.
Layer	From the drop down list select the required layer for the display of the HGL's. Use the Edit Layer Settings command to edit the layers available.
OK	Apply and add Data Band Control to list and exit.
Cancel	Exit the form without adding any data.
