String Code Label Settings

Icon:
Menu:	Roads > Labels > String Code Label Settings General > Labels > String Code Label Settings
Ribbon:	Roads Tab > Plan Production Panel > Labels Dropdown > String Code Label Settings General Tab > Labels Panel > Settings Dropdown > String Code Label Settings

---

Introduction

This command establishes particular String Codes to include in plan labelling, when using the Multi String or String Labels commands.

String Codes are created from applying a Template to a string, or by inserting Codes using the Variations for a String.

When plotting String code features to plan, a list of codes to include is required.  This command delivers the list of codes to label.

This command can be run independently, or can be accessed when running the  Multi String or String Labels commands.



Details

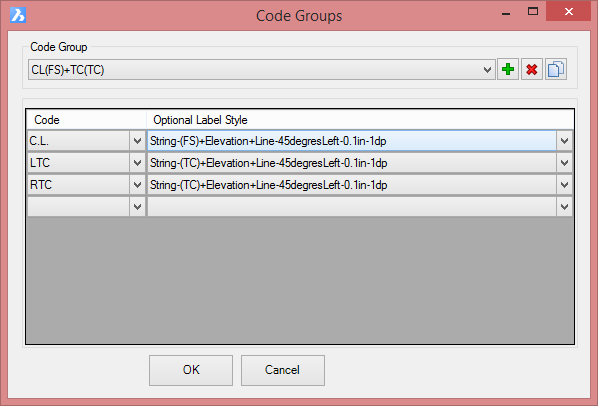

Upon selecting the command the following form is displayed:

Code Group	This is a named collection of Codes to include in plan labelling outputs
New	Create a new Code Group.  A form will display to enter a new Code Group name.
Delete	Deletes the current Code Group.
Copy	Make a copy of the current Code Group
Code List	List of codes to include in outputs and, optionally, assign specific Label Styles to the respective codes.
Code	Use the pick list on each row to select all the code/s to plot labels for.
Optional Label Style	Use the pick list to set a specific Label Style to apply to each code listed.
OK	Apply and exit.
Cancel	Exit the form without deleting any data.
