Set Vertical Grading Window Colours

Set Vertical Grading Window Colours

Icon:
Menu: Roads > Settings > Set Vertical Grading Window Colours
Ribbon: Roads Tab > Settings Panel Slideout > Set Vertical Grading Window Colours

Introduction

This command allows the designer to customise the display of the Vertical Grading Editor (VGE). Here, the designer can edit the size of text displayed and assign colours to text and other items, such as the VGE background colour. The command is also available from the VGE window.

Details

Upon selecting the command the following form is displayed:

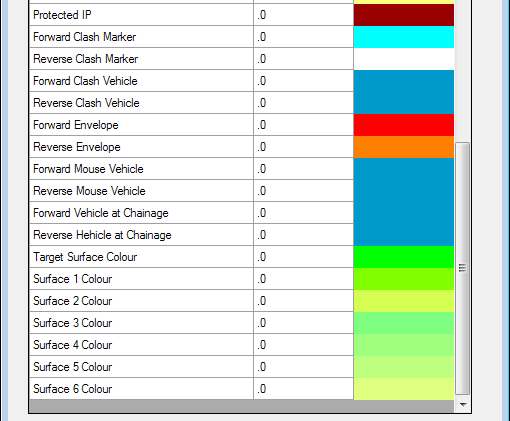

Extended entries related to display of Vehicle Clearance (and multiple surfaces from the Driveway creation process) information:

Item This column displays the items that can be customised in the Vertical Grading Editor window.

Text Size This column displays the current text size for each item. The value can be changed by clicking a cell and typing the required value.

Colour This column displays the current colour for each item. To change a colour, click the colour that is to be adjusted and the Select Colour window will open. Pick a new colour and click OK.

Save As Save the current style, which includes the respective colours and text sizes for each item, so it can be used in future documents.

Load Style Load a previously saved style.

OK Apply and exit.

Cancel Exit the form without changing any data.

Extended entries related to display of Vehicle Clearance (and multiple surfaces from the Driveway creation process) information:
Item	This column displays the items that can be customised in the Vertical Grading Editor window.
Text Size	This column displays the current text size for each item. The value can be changed by clicking a cell and typing the required value.
Colour	This column displays the current colour for each item. To change a colour, click the colour that is to be adjusted and the Select Colour window will open. Pick a new colour and click OK.
Save As	Save the current style, which includes the respective colours and text sizes for each item, so it can be used in future documents.
Load Style	Load a previously saved style.
OK	Apply and exit.
Cancel	Exit the form without changing any data.
