Land XML Transfer

LandXML Transfer

Icon:
Menu:    Alignments > LandXML Transfer
Ribbon: Alignments Tab > Design Panel > Alignment LandXML Transfer

Introduction

Use this command to create alignments in the software from a LandXML file, and to export alignment data out into a LandXML file for use in alternate design packages such as AutoCAD Civil 3D.

Traditionally this command is used to share alignment data with alternate design packages such as AutoCAD Civil 3D.

If designers are porting data between CSD on the AutoCAD platform and CSD on the AutoCAD Civil 3D platform, use LandXML to share surface and alignment data across the platforms.

Details

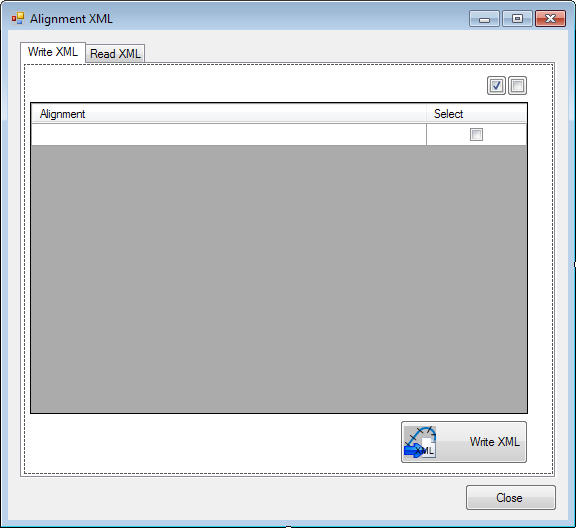

Upon selecting the command the following form is displayed:

All On Ticks on all alignments in the list for export to a Land XML files

All Off Unticks all alignments in the list for export to a Land XML files

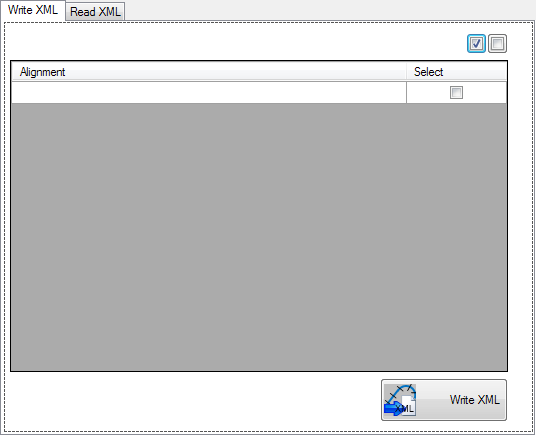

Write XML Tab for exporting alignments to a Land XML file



All On Ticks on all alignments in the list for export to a Land XML files

All Off Unticks all alignments in the list for export to a Land XML files

Alignment Selection List Lists the alignments available for export to a LandXML file - items ticked on are set to be included in a LandXML file

  Alignment Lists the alignments available for export.  Non editable fields

  Select Tick on/off alignments for inclusion in a LandXML file

Write XML Click to create a LandXML file containing the alignment data.  A message box will display to confirm that the Land XML file has been created.  By default, the exported file will by created in a folder named 'XMLExchangeFiles' located in the project data directory.
Note: By default, the Project Data Directory is located in the same folder as the current drawing, in a folder with the same name as the current drawing and with '-Data' added to the suffix

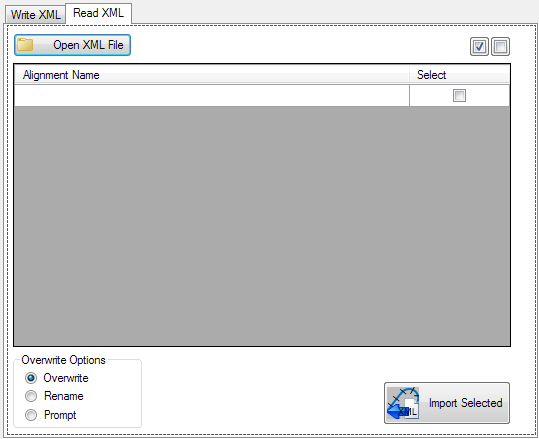

Read XML Tab for importing alignments from a Land XML file into the software

Open XML File Click to select a Land XML file to open.  Alignment data in the file will be presented in the Alignment Selection List.

All On Ticks on all alignments in the list for export to a Land XML files

All Off Unticks all alignments in the list for export to a Land XML files

Alignment Selection List Lists the alignments available for export to a LandXML file - items ticked on are set to be included in a LandXML file

    Alignment Lists the alignments available for export.  Non editable fields

    Select Tick on/off alignments for inclusion in a LandXML file

Overwrite Options Where an alignment with the same name already exists in the project, the Overwrite Options sets how this conflict is to be resolved

    Overwrite Replace all current alignments in the project with the alignment geometry from the Land XML file

    Rename Rename the conflicting alignments and add them to the project

    Prompt Prompt the user to select Overwrite or Rename whenever an alignment conflict is detected during the import.

Import XML Click to create a LandXML file containing the alignment data.  A message box will display to confirm that the Land XML file has been created.  By default, the exported file will by created in a folder named 'XMLExchangeFiles' located in the project data directory.
Note: By default, the Project Data Directory is located in the same folder as the current drawing, in a folder with the same name as the current drawing and with '-Data' added to the suffix

Close Close the form
