Toggle Display

Icon:
Menu:	Surfaces > Toggle Surface Display Roads > Select/Open/Edit > Open Vertical Grading Editor Window > Control Surface Display icon
Ribbon:	Surfaces Tab > Utilities Panel > Toggle Display Roads Tab > Select Panel > Open Vertical Grading > Control Surface Display icon

---

Introduction

Often it is desired to quickly turn surface display on/off for major elements such as the mesh and contours, as well as to change the contour intervals.  This form provides a quick method for managing the basics of surface display - this is particularly useful when there are multiple surfaces in the project.

It also provides similar controls over Models and Section lines.

Changes made are written to the Outputs control for each surface.

This is not a modeless form, it must be closed before work can continue in the drawing.

Details

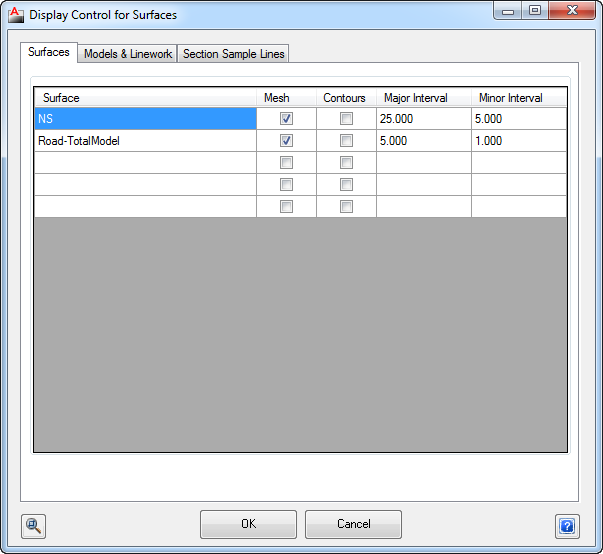

Upon selecting the command the following form is displayed:

Surfaces Tab	Lists the objects and the main toggle control options, as shown above.
Surface Name	Lists each Surface in the drawing.  Click on the toggles or in the cells to make changes.
Mesh	Tick to turn On/Off the display of the mesh or triangles.
Contours	Tick to turn On/Off the display on the contours.  This control effects all types of contours.
Major Interval	Type in the value of the Major Contour interval required.
Minor Interval	Type in the value of the Minor Contour interval required.
Zoom and/or Pan	Use the Mouse wheel to zoom and pan in the drawing.  Press ESC to finish and return to the form.
OK	Apply and exit.
Cancel	Exit the form without making changes or use the Windows Red-X.
Help	Display Help on this command.

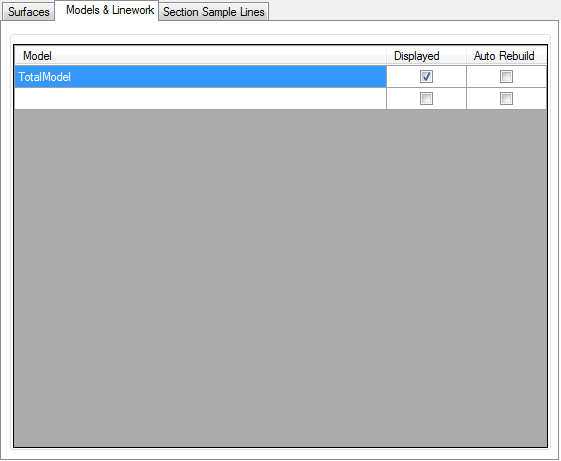

Model & Linework Tab	Lists the objects and the main toggle control options.  Tab shown below. Models and Linework equate to breaklines of features, for example, kerb lines (top, back, lip), footpaths and centrelines, etc.
	Model Name Lists each (CSD Road Design) Model in the drawing.  Click on the toggles to make changes.   Displayed Tick to turn On/Off the Display of the Model.   Auto Rebuild Tick to turn On/Off the Auto Rebuild of the Model.
Section Sample Lines Tab	Lists the String objects and the main toggle control options. Tab shown below. Sample Lines are the lines that represent the overall width of sampling taken perpendicular to the corresponding alignment string object, typically for cross section plotting purposes.
	All ON Turn Display ON for all objects or only those selected (highlighted). All OFF Turn Display OFF for all objects or only those selected (highlighted). Deselect All Deselects all objects/rows. Invert Selection Invert the Display toggle for all items. Items that have display On, will be turned Off, and vice versa. Zoom Extents Zoom to the extents of the selected (current) String. String Object Lists each String object in the drawing.  Click on the toggles to make changes.  Select a row by clicking on the name, Ctrl-left click to select additional individual rows or Shift-left click to select a range. String Type Indicates the Type of String or Alignment, for example a Road, Kerb, CulDeSac etc. Displayed Tick to turn On/Off the display on the Sample Lines for that String.
