Road Assist

Icon:
Menu:	CSD A.I. >  Road Assist
Ribbon:	CSD A.I. Tab > Project Assist Panel > Road Assist

---

Introduction

Road Assist allows users to create an individual Road String and associated alignments, rather than all Strings in the drawing.

This otherwise runs through exactly the same process as Project Assist.

Details

Upon selecting the command the Project Settings form and then the Alignment Type forms are displayed, as per Project Assist.

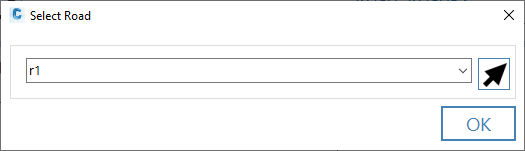

Before proceeding to the Workflow, users will be prompted to select a Road:

After this the Workflow is displayed as per Project Assist, for the selected Road String and associated alignments.Add any notes about the output controls and any special conditions.
