Select Pipes To Plot

Select Pipes To Plot

Icon:
Menu:    Pipes > Select Pipes To Plot
Ribbon: Production Tab > CAD Pipe Production Panel > Select Pipes to Plot

Introduction

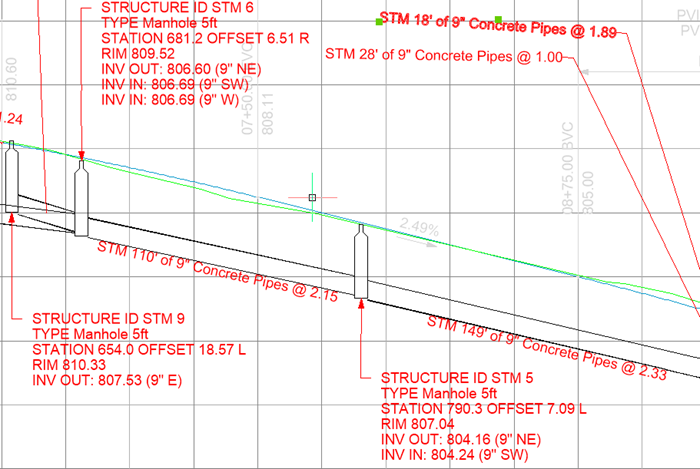

Users assign pipes to display on the profile views created.

It is important to have first created Profile Views.

Users create a Pipe Plotting Group - the Group is then selected for display on a profile plot.

Details

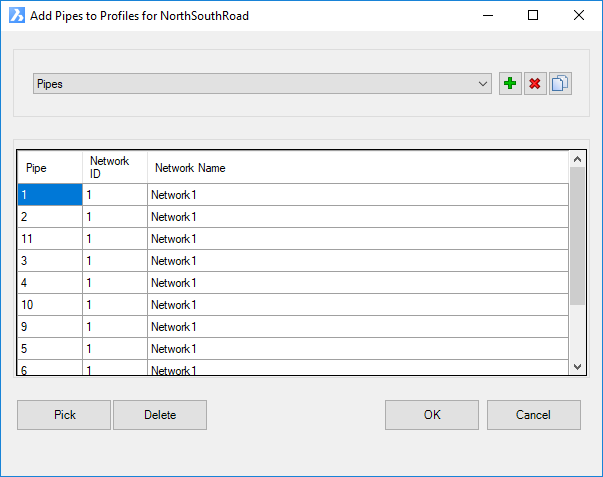

Upon selecting the command the user will be prompted to select a String.  After selecting a String following form is displayed:

  Group
Picklist of Groups to assign pipes to.

  Add
Create a new Group

  Delete
Delete the selected Group

  Copy
Copy the Group and edit the copy.  User will be prompted for a name.

List of Pipes List of pipes added, identified by the Network Name and Network ID

Pick
After clicking on this button, click in the drawing to assign pipes to the group. Press [esc] to return to this form and review the added pipes

Delete
Delete the highlighted pipe in the list.

OK

Apply and exit.

Cancel

Exit without applying changes



Group	Picklist of Groups to assign pipes to.
Add	Create a new Group
Delete	Delete the selected Group
Copy	Copy the Group and edit the copy. User will be prompted for a name.
List of Pipes	List of pipes added, identified by the Network Name and Network ID
Pick	After clicking on this button, click in the drawing to assign pipes to the group. Press [esc] to return to this form and review the added pipes
Delete	Delete the highlighted pipe in the list.
OK	Apply and exit.
Cancel	Exit without applying changes
