Details

This provides control for the layer that the vertical lines are drawn on in the view frame (where the pipes and structures are displayed). Vertical lines will be drawn at left and right sides of the frame as well as at any structures.

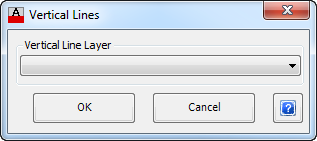

Upon selecting the the Vertical Lines button from the Data Bands/Controls form the following form is displayed:

Vertical Line Layer From the drop down list select the required layer to display the vertical lines. Use the Layer Settings command to edit the layers available.

OK Apply, exit the form and add controls to Table.

Cancel Exit the form without adding control to Table.


Vertical Line Layer	From the drop down list select the required layer to display the vertical lines. Use the Layer Settings command to edit the layers available.
OK	Apply, exit the form and add controls to Table.
Cancel	Exit the form without adding control to Table.
